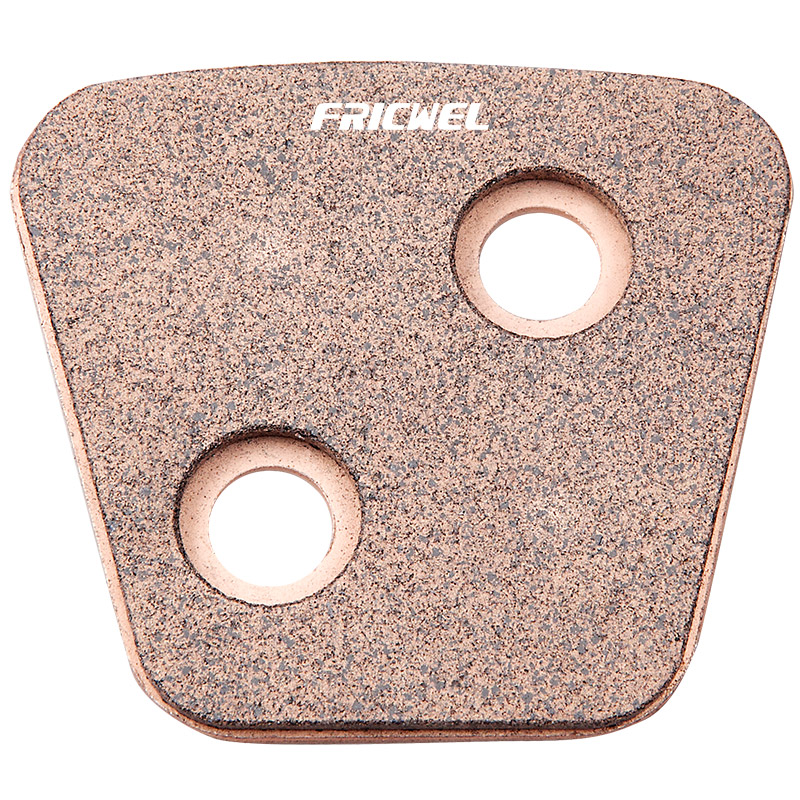

FYXL--2 Right diagonal holes
FYXL Cushion Clutch Button for clutch disc assembly.
Dimension:63x57mm, 2 right diagonal holes, Rivet hole dia.: 9.4mm;
Thickness: 4.0mm-4.8mm; Both smooth and rough surface available.
FYXL cushion button clutch used in bronze clutch kit. We have three clutch button formula currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it’s developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.
| FRICWEL NO. | DESCRIPTION | DIMENSION (mm) |
WELLMAN | WELLMAN THICKNESS | MIBA | MIBA THICKNESS | ||
| INCH | MM | INCH | MM | |||||
| FYXL 140.360 | 2 Right diagonal holes | 63X57 | VTD-4R | 0.142 | 3.607 | BD 140.360R | 0.140 | 3.556 |
| FYXL 156.400 | VTD-5R | 0.157 | 3.988 | BD 156.400R | 0.156 | 3.962 | ||
| FYXL 173.440 | VTD-7R | 0.177 | 4.496 | BD 173.440R | 0.173 | 4.394 | ||
| FYXL 187.480 | VTD-8R | 0.189 | 4.801 | BD 187.480R | 0.187 | 4.750 | ||
