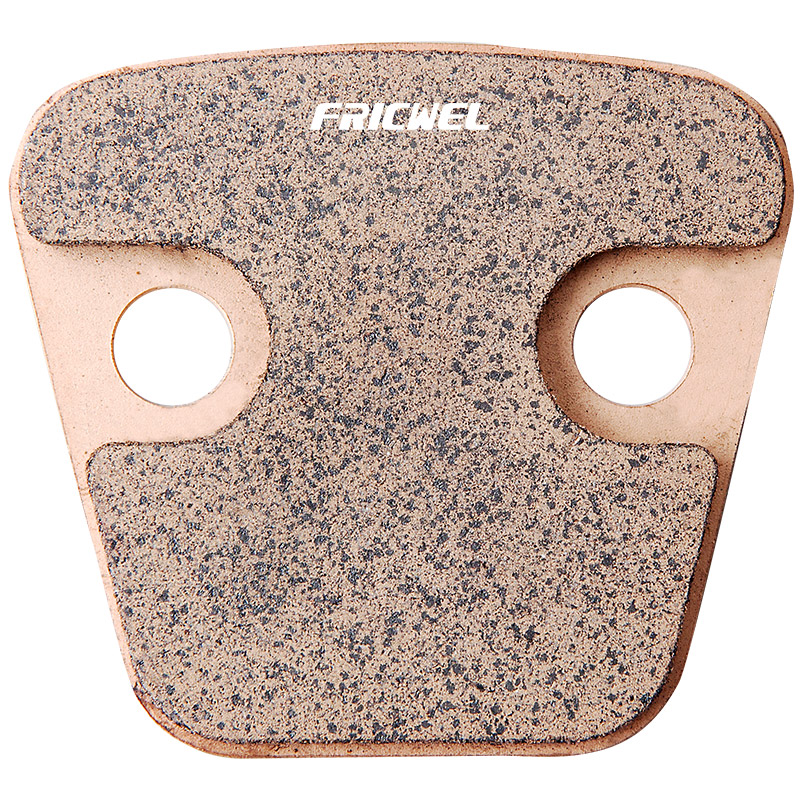

FQXL 2 Horizontal holes with indentation
FQXL Brass clutch button
1, Dimension:63x57mm, 2 horizontal holes;
2, Thickness: 4.0mm-4.8mm; Rivet holes: 9.4mm;
3, Both smooth and rough surface available.
FQXL used in clutch disc is a brass clutch material, sinter clutch material has low wearing rate and widely used in heavy duty clutch. We have three clutch button formula currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it's developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.
| FRICWEL NO. | DESCRIPTION | DIMENSION (mm) |
WELLMAN | WELLMAN THICKNESS | MIBA | MIBA THICKNESS | ||
| INCH | MM | INCH | MM | |||||
| FQXL 140.360 | 2 Horizontal holes with indentation | 63X57 | EVT-4 | 0.140 | 3.556 | BH140.360 | 0.140 | 3.556 |
| FQXL 156.400 | EVT-5 | 0.156 | 3.962 | BH 156.400 | 0.156 | 3.962 | ||
| FQXL 173.440 | EVT-7 | 0.175 | 4.445 | BH 173.440 | 0.173 | 4.394 | ||
| FQXL 187.480 | EVT-8 | 0.187 | 4.750 | BH 187.480 | 0.187 | 4.750 | ||
