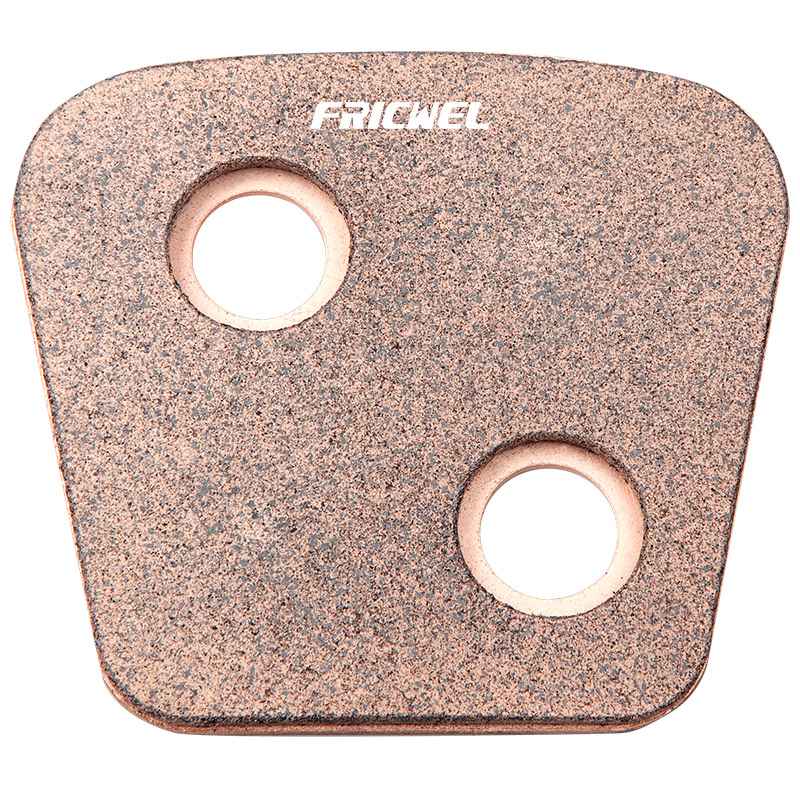

FZDL 2 Left diagonal holes

FZDL Clutch Button for clutch plate material.

1, Dimension:77x69mm, 2 left diagonal holes;

2, Thickness: 4.0mm-4.8mm; Rivet holes: 12.8mm;
3, Both smooth and rough surface available.

FZDL is a high quality clutch plate material used in aftermarket and OEM clutch disc assembly.  We have three clutch button formula currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it’s developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.





FRICWEL NO. DESCRIPTION DIMENSION
(mm)
WELLMAN WELLMAN THICKNESS MIBA MIBA THICKNESS
INCH MM INCH MM
FZDL 148.375 2 Left diagonal holes 77X69 VTLD-4 0.140 3.556 GBD 148.375 0.148 3.759
FZDL 156.400 VTLD-5 0.156 3.962 GBD 156.400 0.156 3.962
FZDL 173.440 VTLD-7 0.175 4.445 GBD 173.440 0.173 4.394
FZDL 187.480 VTDL-8 0.187 4.750 GBD 187.480 0.187 4.750
