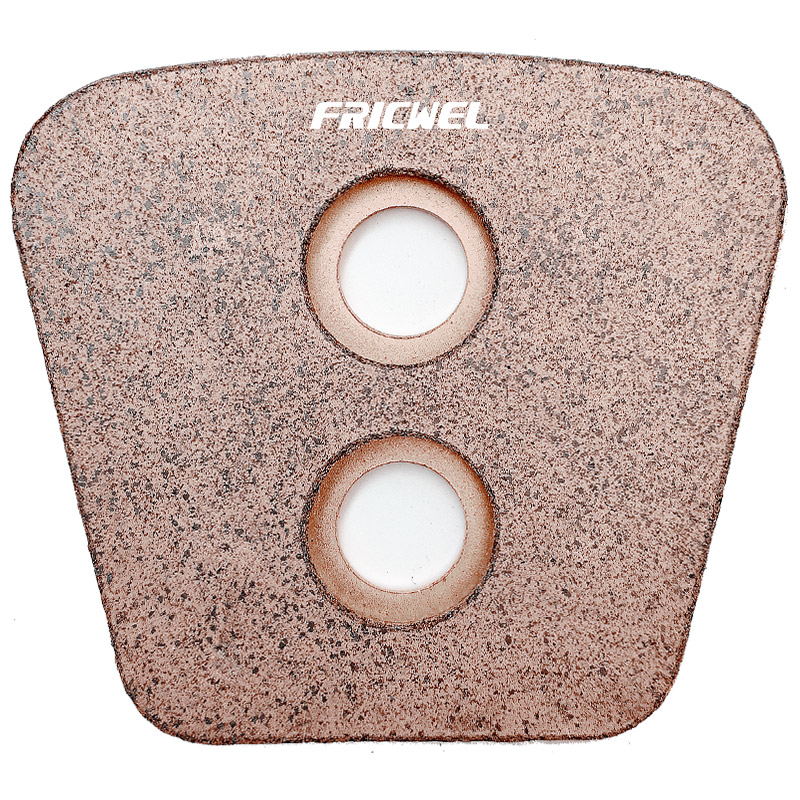

FDL 2 Vertical holes
FDL Clutch Button Lining
Dimension:77x69mm, 2 vertical holes;
Thickness: 4.0mm-4.8mm; Rivet holes: 12.8mm;
Both smooth and rough surface available.
We have three high performance clutch material currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it’s developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.
| FRICWEL CLUTCH BUTTON TOOLINGS | ||||||||
| FRICWEL NO. | DESCRIPTION | DIMENSION (mm) |
WELLMAN | WELLMAN THICKNESS | MIBA | MIBA THICKNESS | ||
| INCH | MM | INCH | MM | |||||
| FDL 140.360 | 2 Vertical holes | 77X69 | VTL-4 | 0.140 | 3.556 | GBV 140.360 | 0.140 | 3.556 |
| FDL 156.400 | VTL-5 | 0.156 | 3.962 | GBV 156.400 | 0.156 | 3.962 | ||
| FDL 173.440 | VTL-7 | 0.175 | 4.445 | GBV 173.440 | 0.173 | 4.394 | ||
| FDL 187.480 | VTL-8 | 0.187 | 4.750 | GBV 187.480 | 0.187 | 4.750 | ||
