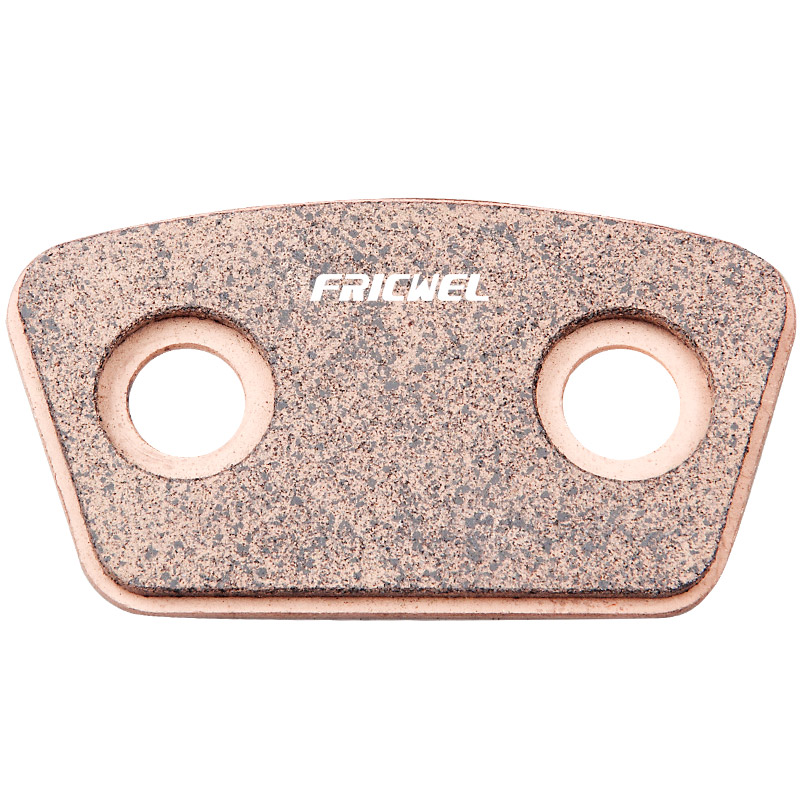

FZHL 2 Horizontal holes straight bottom
FZHL Sport type Clutch Button used in racing cars.
Dimension:67.2x36.5mm, 2 horizontal holes;
Thickness: 3.2mm-4.8mm;
Both smooth and rough surface available.
FZHL clutch buttons is a sport type clutch used in racing cars clutch disc assembly. The frictioin clutch mateiral made from copper material is low wearing rate and popular among customers. We have three clutch button formula currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it’s developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.
FRICWEL NO. | DESCRIPTION | DIMENSION (mm) |
WELLMAN | WELLMAN THICKNESS | MIBA | MIBA THICKNESS | ||
INCH | MM | INCH | MM | |||||
FZHL 125.320 | 2 Horizontal holes with straight bottom edge | 67X36.5 | VTS-2 | 0.125 | 3.175 | BHK 125.320 | 0.125 | 3.175 |
FZHL 140.360 | VTS-4 | 0.140 | 3.556 | BHK 140.360 | 0.140 | 3.556 | ||
FZHL 156.400 | VTS-5 | 0.156 | 3.962 | BHK 156.400 | 0.156 | 3.962 | ||
FZHL 173.440 | VTS-7 | 0.175 | 4.445 | BHK 173.440 | 0.173 | 4.394 |
