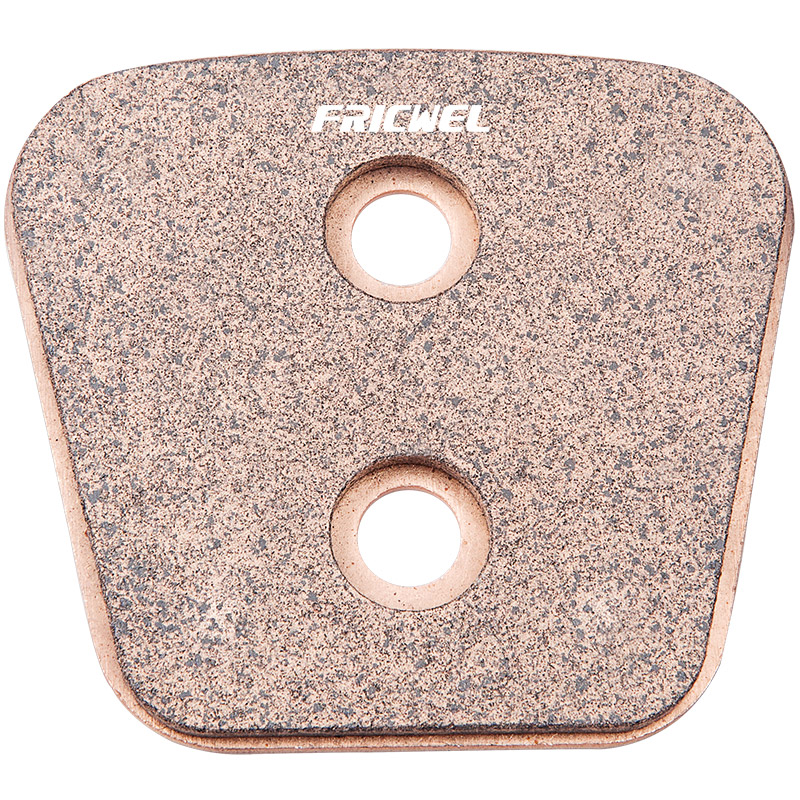

FDL-X Two Vertical Small Holes

FDL-X Ceramic Clutch Button Lining

Dimension:77x69mm, 2 vertical holes;

Thickness: 4.0mm-4.8mm; Rivet holes: 9.4mm;

Both smooth and rough surface available.



FDL-X is a two vertical holes brake pads ceramic clutch button, with small rivet holes, suitable for clutch plate of various application. We have three high performance clutch material currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it’s developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.


FRICWEL NO. DESCRIPTION DIMENSION
(mm)
WELLMAN WELLMAN THICKNESS MIBA MIBA THICKNESS
INCH MM INCH MM
FDL 140.360 2 Vertical holes 77X69 VTL-4 0.140 3.556 GBV 140.360 0.140 3.556
FDL 156.400 VTL-5 0.156 3.962 GBV 156.400 0.156 3.962
FDL 173.440 VTL-7 0.175 4.445 GBV 173.440 0.173 4.394
FDL 187.480 VTL-8 0.187 4.750 GBV 187.480 0.187 4.750
