• heavy duty clutch

FDHL

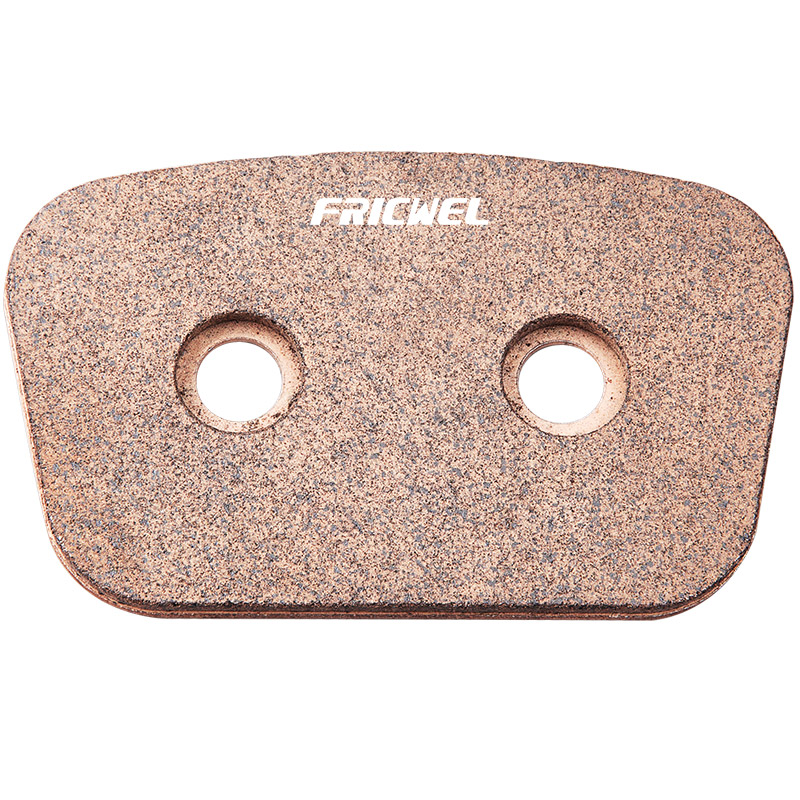

FDHL Clutch Bronze Button for Heavy Duty Clutch
Dimension:90x55mm, 2 horizontal holes;
Thickness: 4.0mm-4.8mm;
Both smooth and rough surface available.

FDHL is a two hole bronze button cluth for heavy duty clutch, suitable for various clutch application.  We have three clutch button formula currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it’s developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.

FRICWEL NO. DESCRIPTION DIMENSION
(mm)
WELLMAN WELLMAN THICKNESS MIBA MIBA THICKNESS
INCH MM INCH MM
FDHL 140.360 2 Horizontal holes with straight bottom edge(large size) 90X55 VTJ-4 0.142 3.607 BHG 140.360 0.140 3.556
FDHL 156.400 VTJ-5 0.157 3.988 BHG 156.400 0.156 3.962
FDHL 173.440 VTJ-7 0.177 4.496 BHG 173.440 0.173 4.394
FDHL 187.480 VTJ-8 0.189 4.801 BHG 187.480 0.187 4.750
