FXL 2 Vertical holes

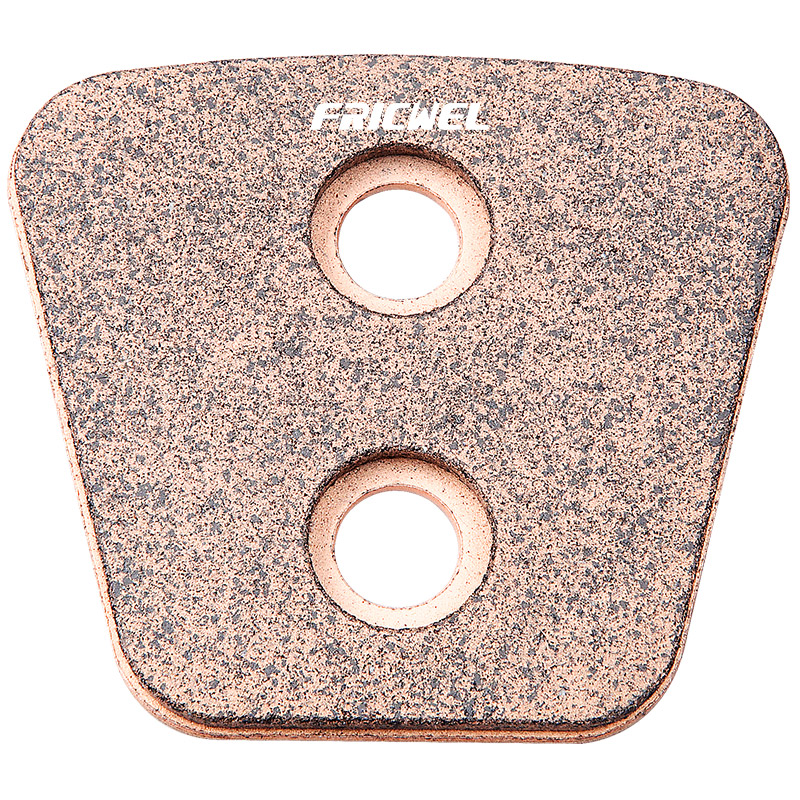

FXL Copper Clutch Button
Dimension:63x57mm, 2 vertical holes;
Thickness: 4.0mm-4.8mm;
Both smooth and rough surface available.
FXL is our copper clutch friction material used in small type of clutch disc assembly. The sintered clutch button has a low friction coefficient and longer life. We have three clutch button formula currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it’s developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.
| FRICWEL NO. | DESCRIPTION | DIMENSION (mm) |
WELLMAN | WELLMAN THICKNESS | MIBA | MIBA THICKNESS | ||
| INCH | MM | INCH | MM | |||||
| FXL 140.360 | 2 Vertical holes | 63X57 | VT-4 | 0.140 | 3.556 | BV 140.360 | 0.140 | 3.556 |
| FXL 156.400 | VT-5 | 0.156 | 3.962 | BV 156.400 | 0.156 | 3.962 | ||
| FXL 173.440 | VT-7 | 0.178 | 4.521 | BV 173.440 | 0.173 | 4.394 | ||
| FXL 187.480 | VT-8 | 0.187 | 4.750 | BV 187.480 | 0.187 | 4.750 | ||
