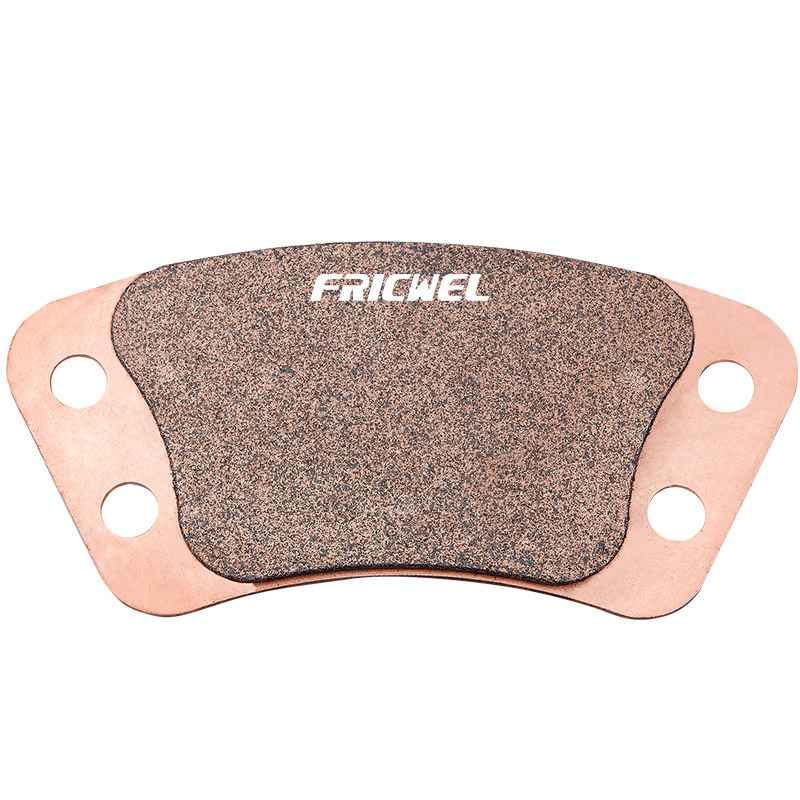

FDSW Four Holes with Curved Edge

FDSW Metallic Clutch Button
1, Dimension:139x62mm, 4 lateral holes;
2, Thickness: 4.0mm-4.8mm; Rivet holes: 9.4mm;
3, Both smooth and rough surface available.

FDSW is a most popular clutch button type used in Mack truck clutch disc assembly. With curved edge and easily to assembing on the assembly, has advantages than regular organic materials. We have three clutch button formula currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it’s developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.

FRICWEL NO. DESCRIPTION DIMENSION
(mm)
WELLMAN WELLMAN THICKNESS MIBA MIBA THICKNESS
INCH MM INCH MM
FDSW 140.360 4 Lateral holes with curved edge 139X62 VSR-10 0.133 3.378 - - -
FDSW 156.400 VSR-11 0.156 3.962 - - -
FDSW 174.442 VSR-12 0.178 4.521 - - -
FDSW 187.480 VSR-13 0.187 4.750 - - -
