FZXL-- 2 Left diagonal holes

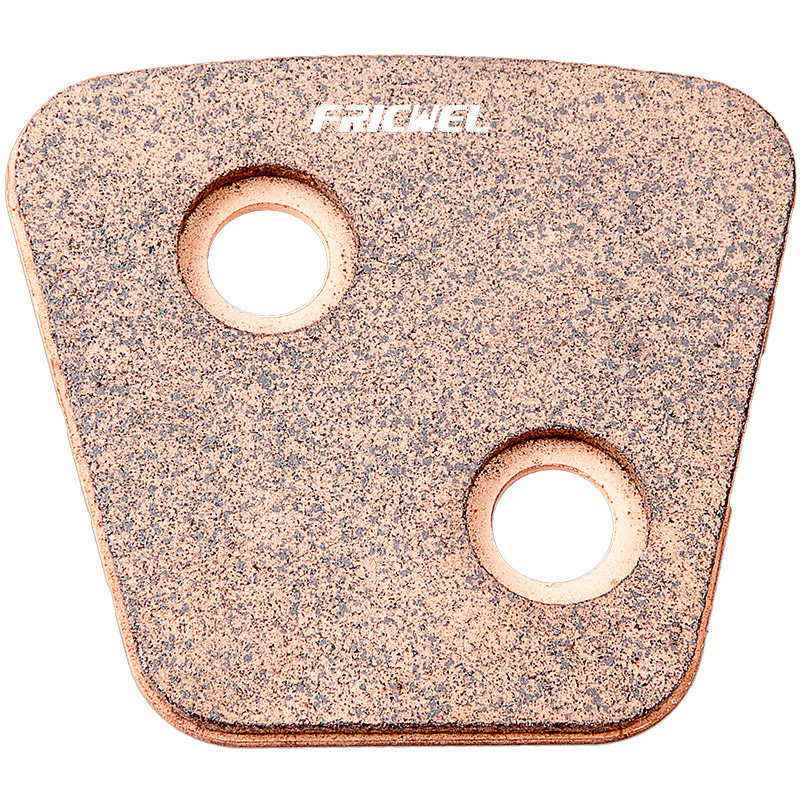

FZXL Cushion Button Clutch

Dimension:63x57mm, 2 left diagonal holes;

Thickness: 4.0mm-4.8mm;
Both smooth and rough surface available.



We produce cushion button clutch used in clutch disc, the clutch components parts including ceramic clutch and organic clutch.We have three clutch button formula currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it’s developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.

FRICWEL NO. DESCRIPTION DIMENSION
(mm)
WELLMAN WELLMAN THICKNESS MIBA MIBA THICKNESS
INCH MM INCH MM
FZXL 140.360 2 Left diagonal holes 63X57 VTD-4 0.142 3.607 BD 140.360 0.140 3.556
FZXL 156.400 VTD-5 0.157 3.988 BD 156.400 0.156 3.962
FZXL 173.440 VTD-7 0.177 4.496 BD 173.440 0.173 4.394
FZXL 187.480 VTD-8 0.189 4.801 BD 187.480 0.187 4.750
