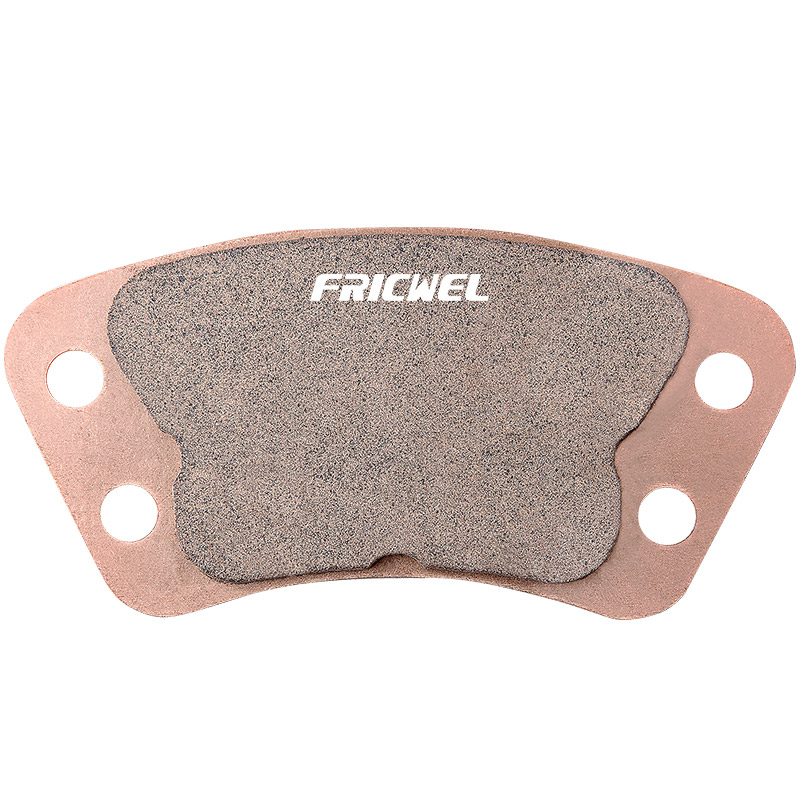

FDS-T Four Holes with Curved Edge

FDS-T Metallic Clutch Button
1, Dimension:139x62mm, 4 lateral holes;
2, Thickness: 4.0mm-4.8mm; Rivet holes: 9.4mm;
3, Both smooth and rough surface available.

FDS-T is a special clutch button type used in heavy duty truck clutch disc assembly. With curved edge and easily to assembing on the assembly, suitable for various application. We have three clutch button formula currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it’s developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.

FRICWEL NO. DESCRIPTION DIMENSION
(mm)
WELLMAN WELLMAN THICKNESS MIBA MIBA THICKNESS
INCH MM INCH MM
FDS 140.360 4 Lateral holes with straight edge 139X62 VSR-20 0.133 3.378 4GB 140.360 0.140 3.556
FDS 156.400 VSR-21 0.156 3.962 4GB 156.400 0.156 3.962
FDS 174.442 VSR-22 0.178 4.521 4GB 174.442 0.174 4.420
FDS 187.480 VSR-23 0.187 4.750 4GB 187.480 0.187 4.750
