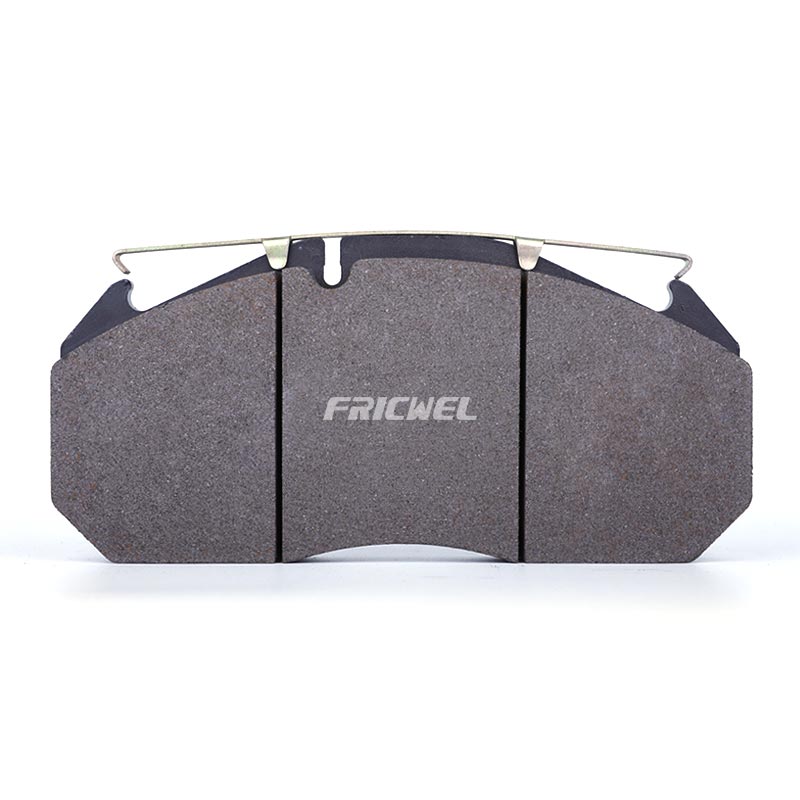

WVA 29030

Item No.: WVA 29030 Size: 249.6mm*118.5mm*28/30.2mm

Auto application: Man Packing: Shrink/4 pcs per set

We have 300 series brake pads suitable for all kinds of commercial vehicles, the material of our brake pads including non-asbestos, semi-metal and NAO formula, ifferent quality materials suitable for all kinds of areas: Africa, Asia, South America, North America and Europe. All our trucks and buses brake pads follow the National standard.

We have the complete work flow and procedure in our own plant, including powder mixing, glue mixing, back plate degrease, back plate blasting, cold pressing, hot pressing, heating treatment, grinding, cleaning, painting, mark printing and packing, and every procedure has a strict quality standard to make sure, that every piece product quality can be assured. And by following the national standard for brake pads, our inspection report can meet the required shearing strength inspection standard, the test result as below:

1) Material friction coefficient: 100-250 ℃: 0.38-0.50; 300-350℃:0.34-0.26;

Wearing rate: 100-350 ℃:0.13-0.18 (10-7 cm3/N M)

2) Brake pads hardness 91.4-95.0 HRR;

3) Brake pad shearing strength: no bearing area, friction particle sticker area over 95%;

4) Brake pads density: 3.0 g/cm3;

For brake lining products, our application mainly for trucks and buses, Vehicles includes trucks types for Man, Bova,Volvo,Mercedes Benz, Daf, Scania, Dennis, Renault Truck, Renault RVI, Kassbohrer, Premium, BPW, Lucas, Iveco EuroCargo, Iveco Daily, Iveco EuroStar, Iveco EuroTech, Nissan, etc.

According to the new specification GB 5763-2018 National Specification for Automotive brake lining products,

our inspection report as below:

1) Friction efficient: 100℃-250℃: 0.405-0.445 300℃: 0.382

2) Wearing rate: 100℃-250℃: 0.105-0.242 300℃: 0.233

3) Hardness: 61-66HRM

We also follow the standard to make sure our product can afford the required impact strength, which is usually between 3.12-3.8DJ/cm2.

We also have moulded brake lining(rubber material) and woven brake lining(non-asbestos yarn material) avaliable.
