• sinter clutch

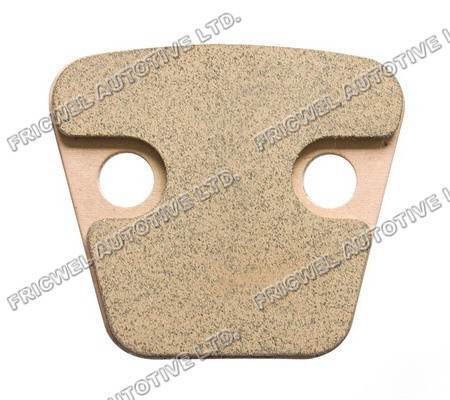

FQXL 2 Horizontal holes with indentation

FQXL Brass clutch button
1, Dimension:63x57mm, 2 horizontal holes;
2, Thickness: 4.0mm-4.8mm; Rivet holes: 9.4mm;
3, Both smooth and rough surface available.

FQXL used in clutch disc is a brass clutch material, sinter clutch material has low wearing rate and widely used in heavy duty clutch. We have three clutch button formula currently, one is our regular formula, smooth finish and medium property, another is the low wear formula with rough finish, the third one is a new formula, it's developed with the assistance of the oversea engineer, and this button is following Miba appearance and similar to its finish and property, it is supplied to our OE customers, due to its low cost and excellent property, it is very popular among our customers from South America and India.

FRICWEL NO. DESCRIPTION DIMENSION
(mm)
WELLMAN WELLMAN THICKNESS MIBA MIBA THICKNESS
INCH MM INCH MM
FQXL 140.360 2 Horizontal holes with indentation 63X57 EVT-4 0.140 3.556 BH140.360 0.140 3.556
FQXL 156.400 EVT-5 0.156 3.962 BH 156.400 0.156 3.962
FQXL 173.440 EVT-7 0.175 4.445 BH 173.440 0.173 4.394
FQXL 187.480 EVT-8 0.187 4.750 BH 187.480 0.187 4.750
